Zoom Scope

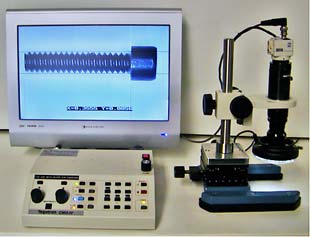

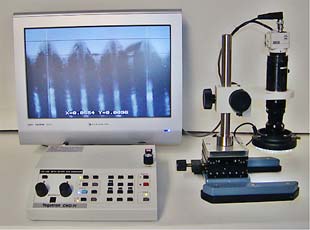

Tegatron has been offering a different microscope which was designed for larger format measuring. We call it the Zoom Scope, because it has zoom capabilities.

The system provides six calibrated positions and is repeatable within 0.05%. Our standard unit has a magnification range of 24X to 150X but can be customized to fit your exact needs. The scope itself uses a high resolution 1/3 ccd color camera and includes precision X-Y positioning. An adjustable LED ringlight is included with the system. It incorporates high output, long life LED’s, thus eliminating having to replace burned out lamps. The ringlight mounts directly onto the zoom objective – no adapter is required.

The control unit for the Zoom Microscope is basically the same as we use on our CMD-IV Microscope with exception to no motor drive. Some of the features of the control unit are:

  • Ease of use
  • 9 programmable calibration presets
  • Variable light control
  • Display on/off
  • Cursor white/black switch
  • Password protected
  • Analog or digital video out via a USB-2 port. This allows you to connect to any PC that has a USB-2 port and download your image for archiving, E-mailing or pasting onto one of your own forms.
  • Optional micrometer type knobs on the X-Y transition.

Please feel free to contact us for more information.
