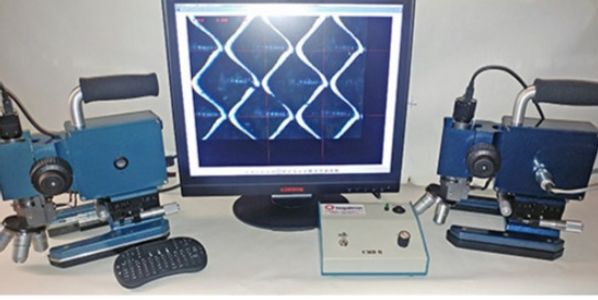

• The new CMD 6 incorporates the latest computer and surface mount electronic technology in the control unit
• The master control unit is factory programmed for ease of operation, but can be customized for special customer needs
• The new precision XYZ transitions operate very smoothly and precisely
• The CMD 6 control unit offers an analog or digital output to a monitor, or digital video out to any PC via the USB-2 port (CMD IV control box only), offering you the ability to archive or Email the video information. The CMD 6 control unit can archive or email straight from the control box.
• The image capture circuitry utilizes a high resolution 1/3rd ccd color camera or HD digital camera
• Options available include a high resolution B/W printer, and a precision digital depth gauge that reads out on the video display as well as at the gauge on the microscope.
• The CMD 6-R has the control box built straight into the microscope for easier use. Both CMD 6-R and CMD 6 uses a computer with WI-FI and Bluetooth capability.

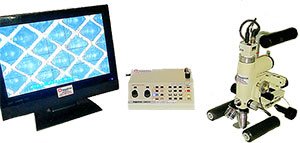

• The CMD 6 is offered with the new computer control box or it can still be offered with a analog CMD IV control box.
• Technical support is readily available – free of charge – by phone or Email from our

The following is a description for a Measuring Box for a Tegatron Roll Scope

The system features a variable intensity internal light source and control for motorized fine focus. The electronic control box incorporates a character generator, which displays the length and width measured in microns on the monitor screen, and a 10' main cable, which connects the control box to the microscope. It is made of a chemically resistant material, and is shielded against noise and spikes, etc.

The Digital CMD V unit has a built-in computer with 3 USB ports. This allows the archiving of pictures and information as well as E-mail capabilities or use a flash drive straight from the control box.

The CMD V has bulit-in WiFi and bluetooth capibilties which works with almost all routers. The CMD V will work on all Tegatrons microscopes as well as other microscopes. The CMD V offers a web browser for emailing

The CMD V is controlled with a wireless rechargable keypad. This will also work with a mouse and keyboard. All upgrades to the CMD V will include a HD camera, 19"monitor, and new main cable.

The system, which is manufactured and serviced at our plant in Franklin, Ohio, is used throughout the world, in all aspects of the printing and in other industries. It is being used to inspect and measure many things, including rotogravure printing cylinders, flexographic anilox cylinders, flexographic plates, offset plates, positive and negative films, and printed copy.

• The CMD V unit consists of a microscope unit, with a high-resolution color camera, a wireless keypad, 7inch touchscreen, a calibration standard, carry case, and a user’s manual.
• The microscope is mounted on an adjustable X Y base.It incorporates an ultra miniature, solid-state HD high-resolution color video camera, which gives a large in-focus field of view in color.
• The microscope also features a variable LED long life intensity internal light source, course and fine focus adjust, manual camera rotation, and the following objectives: 10X, 20X .
• The microscope character generator, which displays the length and width measured in microns on the touchscreen.
• The CMD V unit allows the archiving of pictures and information as well as E-mail capabilities with a web browser
• The CMD V unit has rechargeable batteries that will last up to 5 hours on a non-stop use and still can be used while charging.
• The CMD V has WI-FI which will work with almost all routers..

Also known as the VRS, the product is a very useful and easy to operate and is used as a register system for a proof press and on flexo mounting equipment. It consists of a small control unit that has one stationary vertical cursor, one stationary horizontal cursor, and one moveable horizontal cursor for set up. It also comes with a high-resolution black & white camera, a high resolution black & white 9" monitor, and all interconnection cables. The lens assembly is standard at 45X magnification, but can be customized to customer specs.

For more information or any questions concerning the Video Register System please feel free to contact us.
